USB modules for analog measurement technology, PT100 by EXDUL®

USB - analog I/O and multifunctional modules


A-380020

EXDUL-122

  • 8 A / D inputs 12 bit
    (4 differential / 8 single ended)
  • 2 D / A outputs 12 bit
  • 24 TTL inputs / outputs
  • USB connection plug & play
Analoge EingängeAnaloge AusgängeTTL Ein-/AusgängeUSB Schnittstelle37polige D-Sub-BuchseDeutsche Beschreibung im Lieferumfang enthaltenEnglische Beschreibung im Internet verfügbarSoftware CD im Lieferumfang enthalten

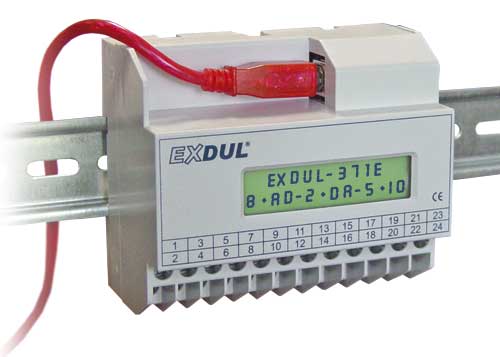

A-381715

EXDUL-371E

  • 8 A/D inputs 12 bit
  • 2 D/A outputs 12 bit
  • 3 optocoupler inputs
  • 2 optocoupler outputs
  • 1 counter (occupies one input)
  • LCD display 2 * 16 bit
  • USB connection plug & play
SchraubklemmenSchraubklemmenOptokoppler AusgängeSchraubklemmenLCD AnzeigeUSB SchnittstelleHutschienen geeignetSchraubklemmenDeutsche Beschreibung im Lieferumfang enthaltenEnglische Beschreibung im Internet verfügbarSoftware CD im Lieferumfang enthalten


A-381710

EXDUL-371S

  • 8 A/D inputs 12 bit
  • 2 D/A outputs 12 bit
  • 3 optocoupler inputs
  • 2 optocoupler outputs
  • 1 counter (occupies one input)
  • USB connection plug & play
SchraubklemmenSchraubklemmenOptokoppler AusgängeSchraubklemmenUSB SchnittstelleHutschienen geeignetSchraubklemmenDeutsche Beschreibung im Lieferumfang enthaltenEnglische Beschreibung im Internet verfügbarSoftware CD im Lieferumfang enthalten

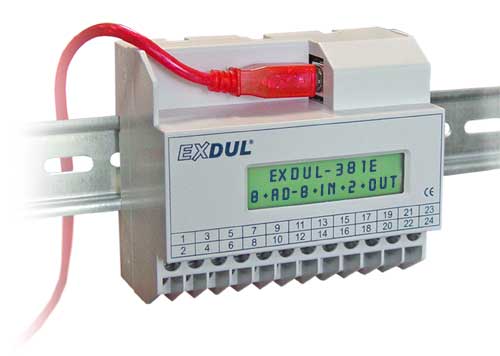

A-381772

EXDUL-381E

  • 8 A / D inputs 16 bit
  • 8 optocoupler inputs
  • 2 optocoupler outputs
  • 5 counters (occupy 5 inputs)
  • LCD display 2 * 16 bit
  • USB connection plug & play
SchraubklemmenOptokoppler AusgängeSchraubklemmenLCD AnzeigeUSB SchnittstelleHutschienen geeignetSchraubklemmenDeutsche Beschreibung im Lieferumfang enthaltenEnglische Beschreibung im Internet verfügbarSoftware CD im Lieferumfang enthalten

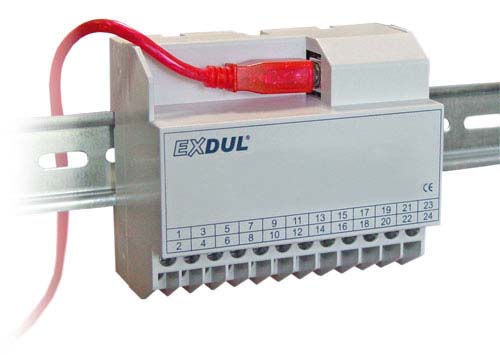

A-381760

EXDUL-381S

  • 8 A/D inputs 16 bit
  • 8 optocoupler inputs
  • 2 optocoupler outputs
  • 5 counters (occupy 5 inputs)
  • USB connection plug & play
SchraubklemmenOptokoppler AusgängeSchraubklemmenUSB SchnittstelleHutschienen geeignetSchraubklemmenDeutsche Beschreibung im Lieferumfang enthaltenEnglische Beschreibung im Internet verfügbarSoftware CD im Lieferumfang enthalten

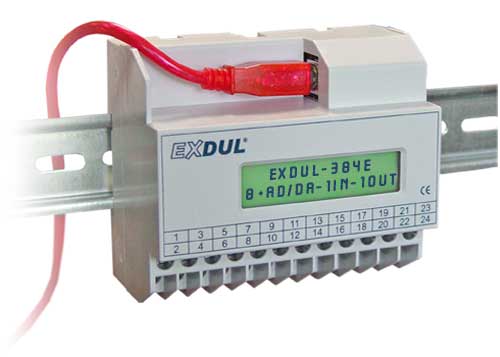

A-381940

EXDUL-384E

  • 8 A/D inputs 16 bit
  • 8 D/A outputs 16 bit
  • 1 optocoupler inputs
  • 1 optocoupler outputs
  • LCD display 2 * 16 bit
  • USB connection plug & play
SchraubklemmenSchraubklemmenOptokoppler AusgängeSchraubklemmenLCD AnzeigeUSB SchnittstelleHutschienen geeignetSchraubklemmenDeutsche Beschreibung im Lieferumfang enthaltenEnglische Beschreibung im Internet verfügbarSoftware CD im Lieferumfang enthalten


A-381920

EXDUL-384S

  • 8 A/D inputs 16 bit
  • 8 D/A outputs 16 bit
  • 1 optocoupler input
  • 1 optocoupler output
  • USB connection plug & play
SchraubklemmenSchraubklemmenOptokoppler AusgängeSchraubklemmenUSB SchnittstelleHutschienen geeignetSchraubklemmenDeutsche Beschreibung im Lieferumfang enthaltenEnglische Beschreibung im Internet verfügbarSoftware CD im Lieferumfang enthalten


A-382220

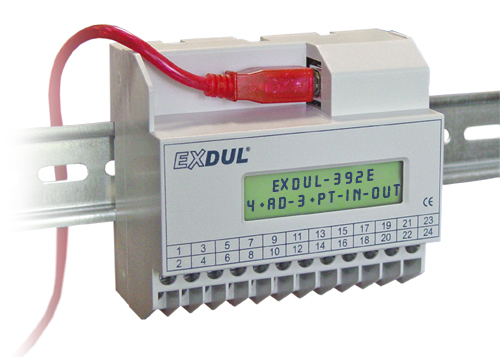

EXDUL-392E100

  • 4 A/D voltage 16 bit
  • 2 A/ D current 15 bit
  • 3 temperature PT100
  • temperature range -200 ... 800°C resolution typ. 0,03°C overvoltage protection +/-45V
  • 1 optocoupler input
  • 1 counter 32 bit
  • 1 optocoupler output
  • LCD display 2 * 16 bit
  • USB connection plug & play
SchraubklemmenTemperaturmessung Pt100Optokoppler AusgängeSchraubklemmenLCD AnzeigeUSB SchnittstelleHutschienen geeignetSchraubklemmenDeutsche Beschreibung im Lieferumfang enthaltenEnglische Beschreibung im Internet verfügbarSoftware CD im Lieferumfang enthalten


Measurement via USB

EXDUL-392S100

  • 4 A/D voltage 16 bits
  • 2 A/D current 15 bits
  • 3 temperature PT100
  • temperature range -200 ... 800°C resolution typ. 0,03°C overvoltage protection +/-45V
  • 1 optocoupler input
  • 1 counter 32 bits
  • 1 optocoupler output
  • USB connection plug and play
SchraubklemmenTemperaturmessung Pt100Optokoppler AusgängeSchraubklemmenUSB SchnittstelleHutschienen geeignetSchraubklemmenDeutsche Beschreibung im Lieferumfang enthaltenEnglische Beschreibung im Internet verfügbarSoftware CD im Lieferumfang enthalten


USB - Temperaturmessung PT100

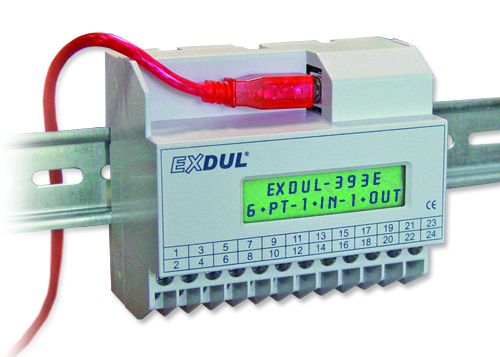

NEW EXDUL-393E100

  • 6 temperature PT100 PT1000
  • temperature range -200 ... 800°C resolution typ. 0,03°C overvoltage protection +/-45V
  • 1 optocoupler input
  • 1 counter occupies one input
  • 1 optocoupler output
  • Programmable logic
  • Module initiated message
  • Watch dog
  • LCD display 2*16 characters
  • USB connection plug and play
Temperaturmessung Pt100Optokoppler AusgängeOptokoppler EingängeLCD AnzeigeUSB SchnittstelleHutschienen geeignetSchraubklemmenDeutsche Beschreibung im Lieferumfang enthaltenEnglische Beschreibung im Internet verfügbarSoftware CD im Lieferumfang enthalten


USB module for temperature measurement

NEW EXDUL-393S100

  • 6 temperature PT100 PT1000
  • temperature range -200 ... 800°C resolution typ. 0,03°C overvoltage protection +/-45V
  • 1 optocoupler input
  • 1 counter occupies one input
  • 1 optocoupler output
  • Programmable logic
  • Module initiated message
  • Watch dog
  • USB connection plug and play
Temperaturmessung Pt100Optokoppler AusgängeOptokoppler EingängeUSB SchnittstelleHutschienen geeignetSchraubklemmenDeutsche Beschreibung im Lieferumfang enthaltenEnglische Beschreibung im Internet verfügbarSoftware CD im Lieferumfang enthalten

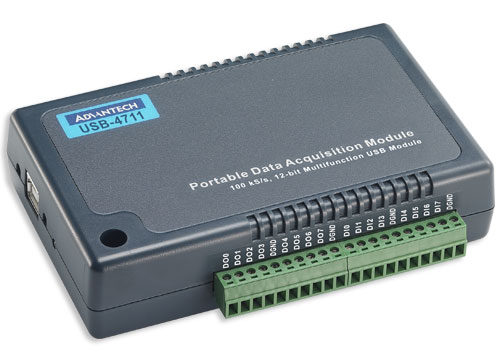

A-38193000

USB-4711A

  • 16 A/D inputs 12 bit
    (8 differential / 16 single ended)
  • 2 D/A outputs 12 bit
  • 8 TTL inputs
  • 8 TTL outputs
  • Event counter 32 bit
  • USB connection plug & play
Analoge EingängeAnaloge AusgängeTTL Ein-/AusgängeUSB SchnittstelleHutschienen geeignetSchraubklemmenSoftware CD im Lieferumfang enthalten

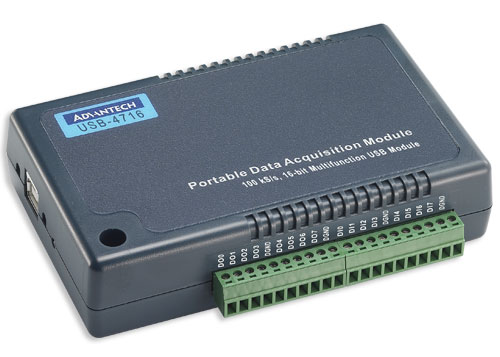

A-38197000

USB-4716

  • 16 A / D inputs 16Bit
    ( 8 differential / 16 single ended)
  • 2 D / A outputs 16 bit
  • 8 TTL inputs
  • 8 TTL outputs
  • Event counter 32 bit
  • USB connection plug & play
  • USB 2.0 compatible
Analoge EingängeAnaloge AusgängeTTL Ein-/AusgängeUSB SchnittstelleHutschienen geeignetSchraubklemmenSoftware CD im Lieferumfang enthalten

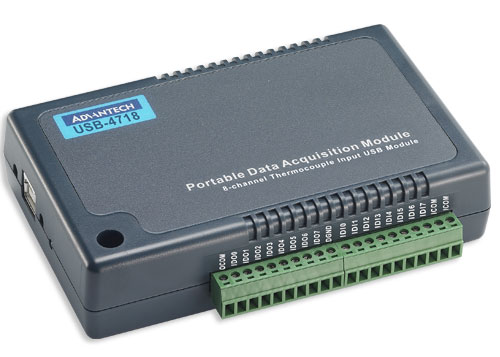

A-38195000

USB-4718

  • 8 A / D inputs 16Bit
    ( differential)
  • Supports thermocouples
  • 8 digital inputs isolated
  • 8 digital outputs isolated
  • USB connection plug & play
  • USB 2.0 compatible
Analoge EingängeDigitale EingängeDigitale AusgängeUSB SchnittstelleHutschienen geeignetSchraubklemmenSoftware CD im Lieferumfang enthalten




USB - analog inputs and outputs for the USB interface of Messcomp®

What is a analog to digital converter?

The term A/D converter stands for a component for converting analog input signals into a digital data stream that can be processed by the computer. There are different conversion methods which differ mainly in speed, accuracy and noise immunity. For this reason, different conversion methods are used, for example, for temperature measurement and rapid signal sampling. The A / D converter is the basic requirement so that the computer can process the analog input signals of various sensors.

What is a digital to analog converter?

The term D/A converter stands for a component for converting the digital data of the computer into an analog signal. This analog output signal can then be used, for example, to control a speed control or other assemblies with a voltage input.

What is a Pt100?

Pt100 is a platinum measuring resistor for temperature measurement. The resistance of platinum, which changes due to temperature, is used for temperature measurement. This resistance thermometer has found widespread use and is standardized in EN 60751. The resistance characteristic is not linear and must therefore be adapted by means of an electronic circuit or software.

USB modules with analog inputs and outputs

The EXDUL® USB modules from Messcomp® with up to eight analog inputs and eight analog outputs are ideal for use both in the laboratory and in industrial control. The analog inputs have the input voltage ranges of +/- 0.63 volts to +/- 10.2 volts and sampling rates of up to 100 kHz, which are common in professional control technology. The analog outputs deliver a current of 5 mA with a voltage range of up to +/- 10.2 volts. Usually one or more optocoupler inputs or outputs are available on these USB modules for switching purposes. The EXDUL-392 is a special measuring module for sensors. It has four voltage inputs as well as two current inputs. It also has three inputs for the direct connection of PT100 temperature sensors.
